CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed

CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed

  • CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed
  • CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed
  • CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed
  • CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed
  • CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed
  • CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed
CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed
Dettagli:
Luogo di origine: Guangdong, Cina
Marca: HYD
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1
Contatto
Descrizione di prodotto dettagliata
Peso: 1800 kg Voltaggio: 380 V
Energia: 12 kW Dimensione del filo: Alto tenore di carbonio: 1-4 mm; Basso tenore di carbonio: 2-6 mm
Servo Motors: 10 assi Max Wire Speed: 100 m/min
velocità di rivoluzione della cam: 0-60 giri / min Diametro esterno: Massimo 60 mm
Rullo di alimentazione a filo: 4 coppie Errore massimo: ± 0,10 ~ ± 359,90
Motore di alimentazione a filo: 5,5 kW Motore a camma: 5,5 kW
Motore dell'asse centrale: 1.0kw Dimensione della macchina: 2500 kg
Dimensioni della macchina: L1100*L1400*A2000MM
Evidenziare:

10 Axes Servo Motors CNC Spring Machine

,

1.0-4.0MM Wire Size Computer Spring Machine

,

0-60 RPM Cam Revolution Speed Spring Coiling Machine

Spring Making Machine CNC Spring Machine Camless Spring Machine 1.0-4.0MM HYD
Product Overview

The HYD-40T-10A is a high-performance CNC spring machine designed for precision spring manufacturing with wire sizes ranging from 1.0-4.0mm for high-carbon steel and 2-6mm for low-carbon steel.

Technical Specifications
Model HYD-40T-10A
Wire Size High-Carbon: 1.0-4.0mm; Low-Carbon: 2-6mm
Servo Motors 10 axes
Outside Diameter Max 60mm
Wire Feed Roller 4 Pairs
Maximum Error ±0.10~±359.90
Wire Feed Speed 100m/min
Cam Revolution Speed 0~60 RPM
Control System 1SET
Decoiler 300KG
Wire Feed Motor 5.5KW
Cam Motor 5.5KW
Core Axis Motor 1.0KW
Motor Brand Sanyo
Power Supply 380V±10%V50Hz
Machine Weight 2500KG
Machine Dimensions L1100×W1400×H2000MM
Product Images

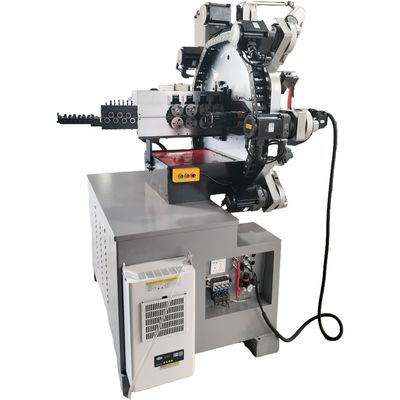

CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed 0

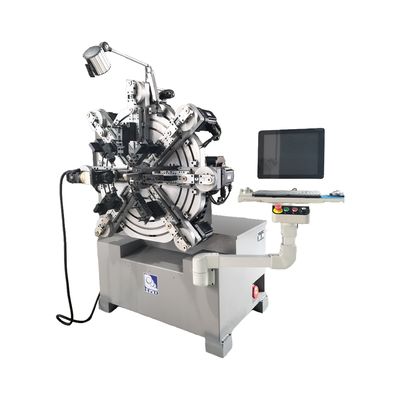

CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed 1

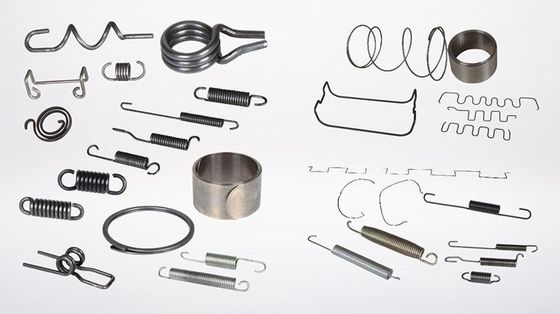

CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed 2

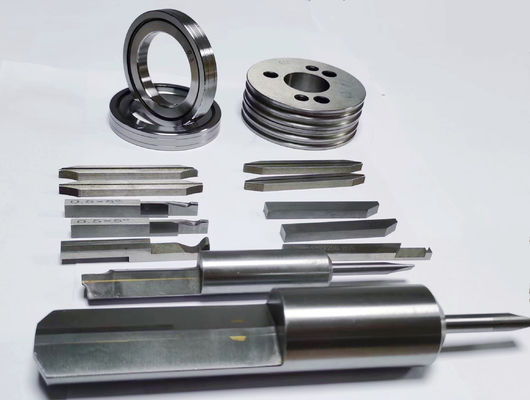

CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed 3

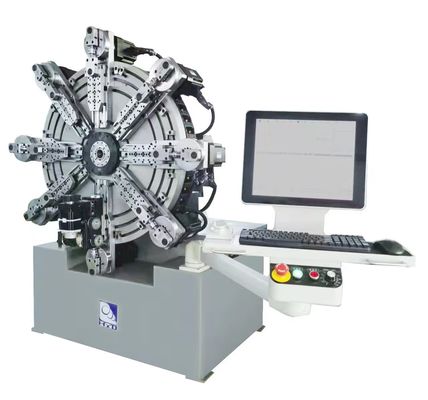

CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed 4

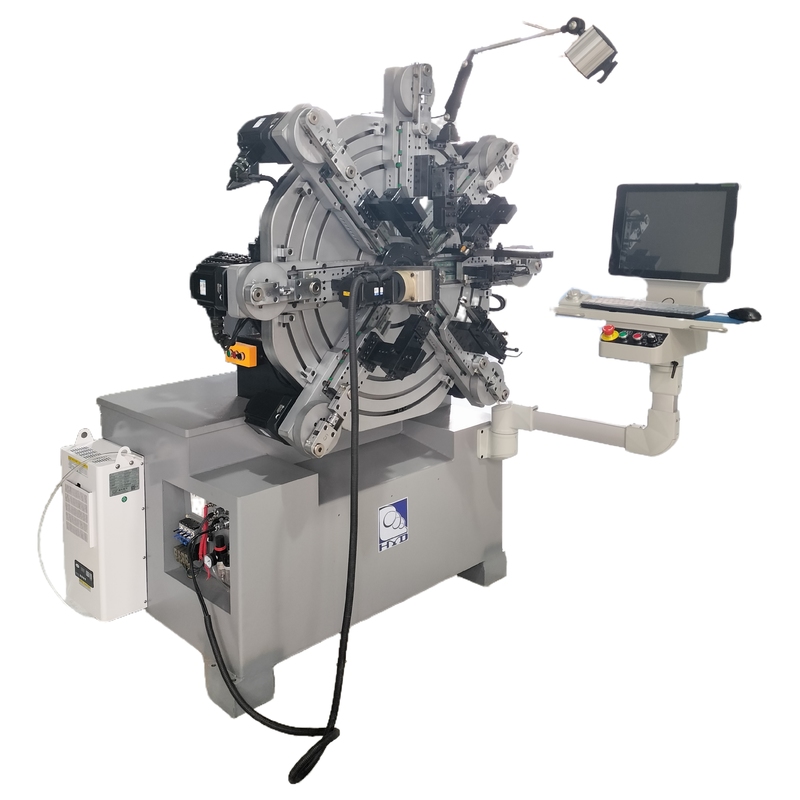

CNC Spring Machine with 10 Axes Servo Motors 1.0-4.0MM Wire Size and 0-60 RPM Cam Revolution Speed 5
Frequently Asked Questions
Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customize as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
