La venuta insieme è un inizio; la conservazione insieme è progresso; il lavoro insieme è successo.

|
| Place of Origin: | Dongguan,China |
| Marca: | HYD |
| Certificazione: | CE / IS09001 |
| Numero di modello: | HYD-40T-3A |
| Quantità di ordine minimo: | 1 set |
|---|---|
| Prezzo: | USD 27500~28500/sets |
| Imballaggi particolari: | Cassa in compensato |
| Tempi di consegna: | 20 giorni |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Capacità di alimentazione: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Asse: | Tre asce | Strumenti facoltativi: | Filatore/servo forbici |
|---|---|---|---|
| Lavori la verniciatura a macchina: | Può essere il colore richiesto | Port: | Shenzhen, Cina |
| Data di consegna: | 15 giorni | Diametro del filo: | 1.0~4.0mm |
| outside Diameter: | Max 60mm | Velocità di avanzamento del cavo: | 110 mm |
| Fornitore di energia: | 380V+10%V50Hz | ||
| Evidenziare: | Bobinatrice della primavera di CNC,Macchina di avvolgimento a molla CNC |
||

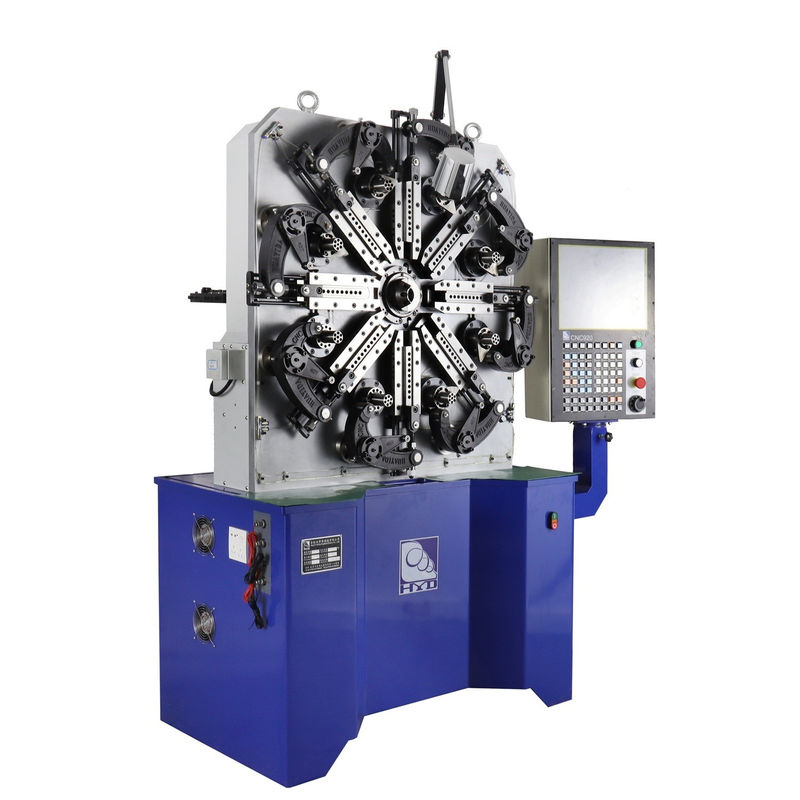

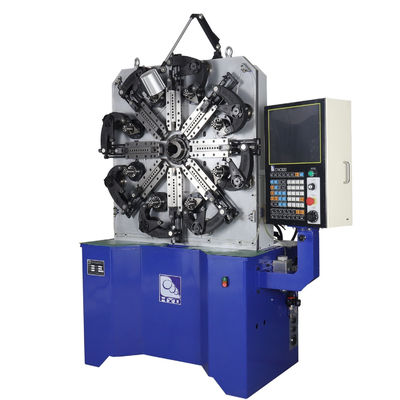

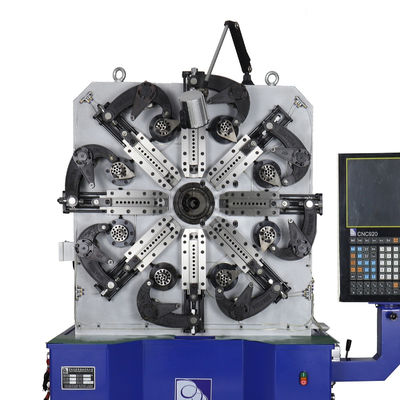

CNC Spring Making Machine Cam Spring Winding Machine With Sanyo Servo Motor
Suitable for processing various precision compression springs, extension springs, single and double torsion springs, tower springs, flat wire springs, special-shaped springs and complex wire forming products, widely used in furniture, electrical appliances, beds/seat cushions, lighting, electric vehicles , automobiles, kitchen utensils, machinery and molds and other fields.
| Diameter | 1.0~4.0mm |
| Max OD | 60mm |
| Wire Feeding speed | 0~110m/min |
| Transmission speed cam | 0~60RPM |
| Wire feed servo motor | 5.5KW |
| Can servo motor | 5.5KW |
| Rotary servo motors | 1.0KW |
| Machine size | 1600*1300*1900mm |
| Machine Weight | 1800kg |
Feature:
1. Versatile spring former applicable for wire forming, torsion and extension springs.
2. 8 forming slides controlled by cam axis.
3. Wire Rotation 360 degree.
4. Quick release mechanism for wire change over.
5. Varieties of configurations such as lateral slide, servo cutter, dual spinner, rotary gripper, hook station and etc.

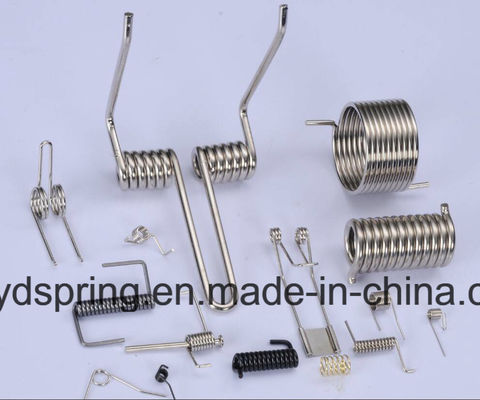

Samples:
After-sale service
---Free installation & training service in HYD company.
---Always provide customers efficient on-line response.
Can you provide technical support?
---HYD provide free technical support,installation and training of machine.
How do you support when machine goes wrong.
---Talk with HYD specialist online by telephone, Skype, WhatsApp etc and give high-efficient solution for the incorrect operation or change the consumable parts.
---HYD specialist will teach you how to change the parts during the training time
Samples:
